IPB320N20N3 G
Manufacturer:
Infineon
Mfr.Part #:
IPB320N20N3 G
Datasheet:
Description:

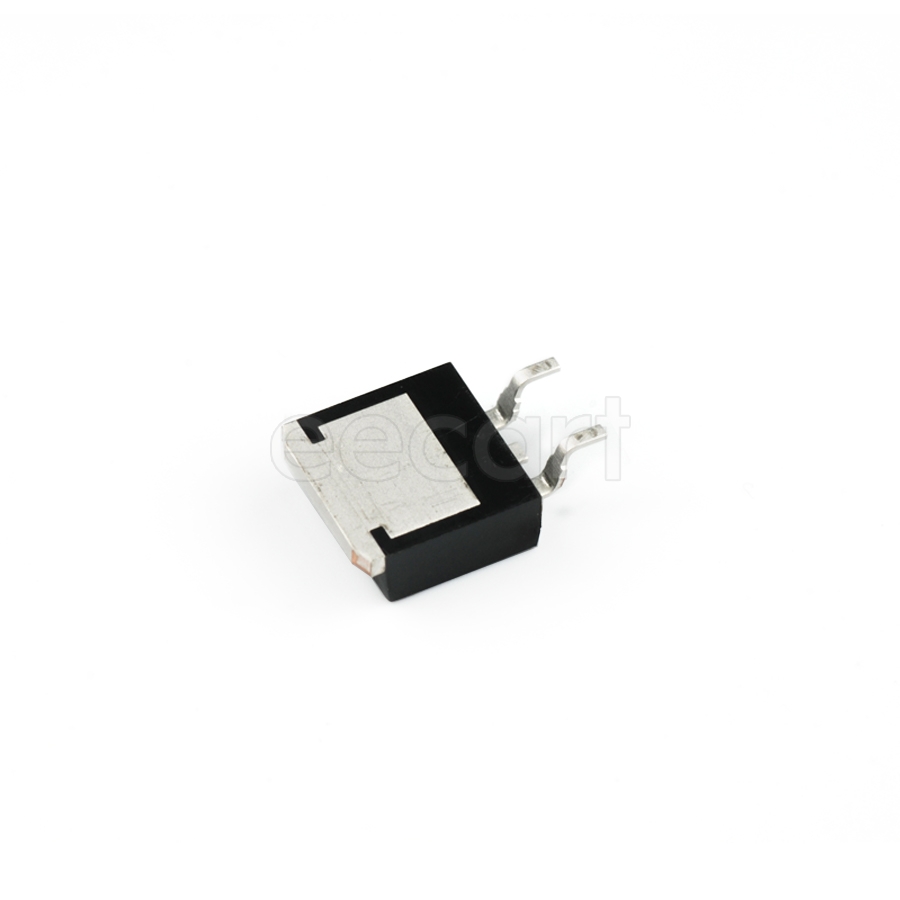

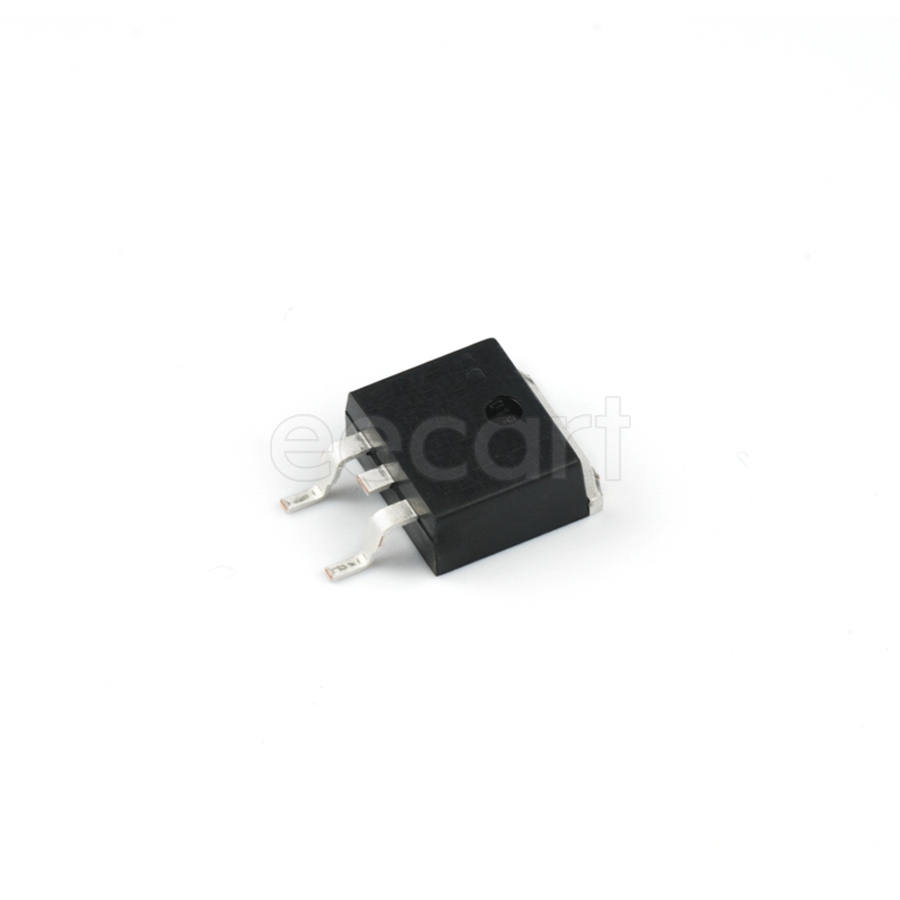

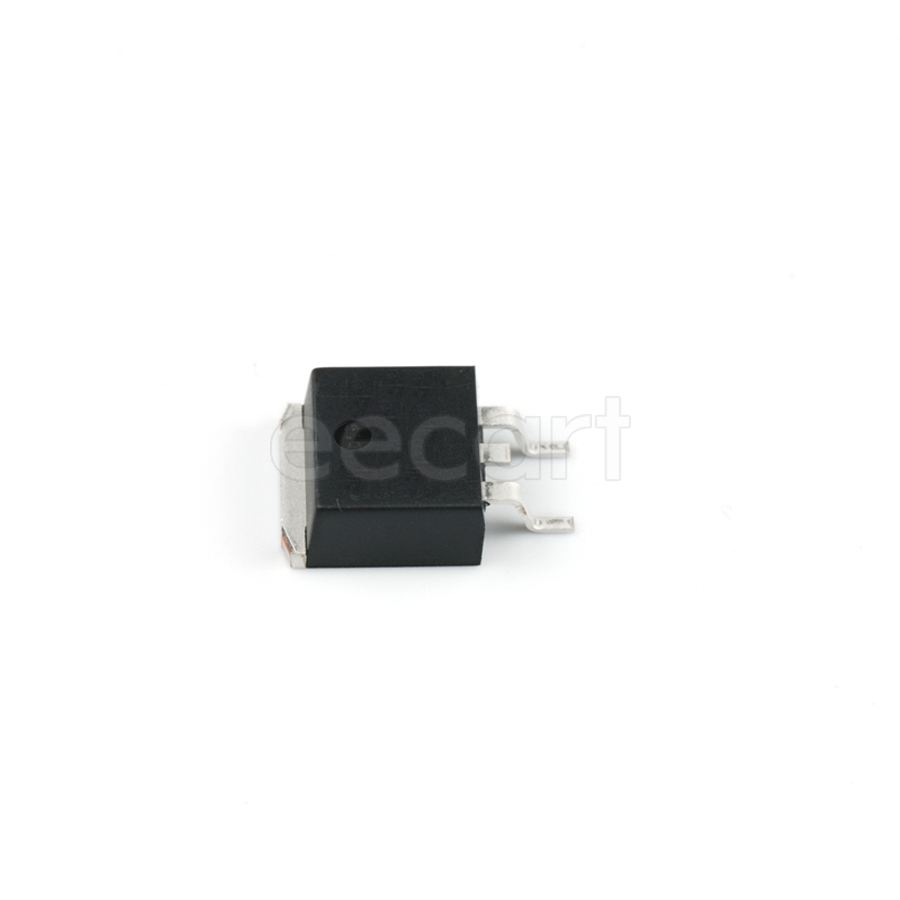

MOSFETs TO-263-3 SMD/SMT N-Channel number of channels:1 136 W 200 V Continuous Drain Current (ID):34 A 29 nC
| Parameter | Value |
|---|---|
| Gate Charge | 29 nC |
| Gate to Source Threshold Voltage | 2 V |
| Continuous Drain Current (ID) | 34 A |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Drain to Source Resistance | 28 mΩ |
| Input capacitance | 2.35 nF |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Power Dissipation | 136 W |
| Drain to Source Breakdown Voltage (Vds) | 200 V |
| Number of Channels | 1 |
| Packaging | Reel |
| RoHS | Compliant |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 1673
Distributors
pcbx
pcbxUnit Price$2.40663
Ext.Price$2.40663
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.40663 | $2.40663 |
| 10 | $1.73550 | $17.35500 |
| 25 | $1.54486 | $38.62150 |
| 50 | $1.43999 | $71.99950 |
| 100 | $1.34224 | $134.22400 |
| 300 | $1.26929 | $380.78700 |
| 500 | $1.20032 | $600.16000 |
| 1000 | $1.01566 | $1015.66000 |
| 3000 | $1.00621 | $3018.63000 |
| 5000 | $0.99685 | $4984.25000 |
